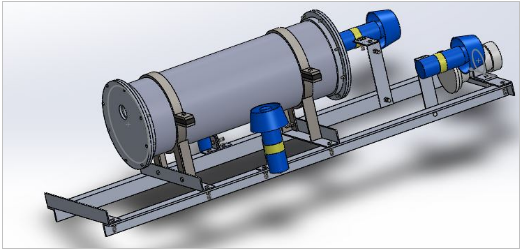

ELECTRICAL

• Sensors

Depth

Paroscientific, Inc. Digiquartz® Pressure Instrumentation Series 8WD Intelligent Depth Sensor

Velocity

LinkQuest ‘s NavQuest 600 Micro DVL

IMU

Xsens Motion Technologies MT9-B Moisture sensor

Inertial Measurement Unit:An IMU with 9 output data (3 axis gyroscopic value, 3 Axis accelerometer, and 3 Axis magnetometer data) will be used to get feedback in the form of Heading, Acceleration and Euler angles.

Doppler Velocity Log(DVL):If required for better accuracy and performance Kraken will be using DVL. DVL uses four Sonars to measure the velocity of AUV in water. By integrating the velocity information, DVL will also give the XYZ co-ordinate information with respect to its initial Point. The DVL also gives roll, pitch and yaw values.

Depth Sensor:Depth sensor is a piezoelectric pressure transducer which will provide depth data from water surface.

Camera:Our AUV is equipped with two cameras, one forward facing and a second one facing down. They provide us with 8-bit color image.



• Embedded Systems

• ATmega16, USB-ISS  Multifunction USB Communications Module, ADAM 4024



The embedded system is used mostly for sensing and actuating the mechanisms. ATmega16 is used to interface a current sensor. The status of moisture sensor is also monitored via it. It also connects to a LCD screen which displays the current value and the status of moisture sensor.
To communicate with the outside word such as to communication with mechanisms LED-LDR circuit is used. One more ATmega16 monitors the LDR and on receiving the specified code actuated the desired mechanisms.

• Vision

Forward

Logitech HD C310 camera

Bottom

Microsoft LifeCam HD 3000

Kraken is powered with two cameras. Front vision is acquired via Logitech HD C310 camera and Bottom vision is captured via Microsoft LifeCam HD 3000. Currently the front and bottom camera is mounted inside the main hull but soon we are going to mount the cameras outside the hull. We also will be shifting to stereo camera for the front vision so as we can get an estimate of an object from the vehicle.

• Power Distribution

• 4 X Lithium Ion (11.1, 3000mAh)
• 1 X Lithium Ion (24V, 9000mAh)



Kraken is powered by 4 Lithium ion battery (11.1V, 3000mAh) and 1 Lithium Ion Battery (24V, 9000mAh). 4 Lithium Ion battery powers the thrusters. This path is completely independent of sensors to reduce any unwanted noise.
The other battery is connects to the power converters which powers the motherboard. This battery also powers sensors after passing through a DC-DC converter.
Both of the batteries have monitoring system which does coulomb counting and makes the system to shut down when it runs low.

• Propulsion

• 4 X Seabotix BTD 150
• 4 X Technadyne

• Motherboard

• Intel D425K Mini ITX Mother Board

SOFTWARE

We have followed the modular approach in making our software, which helps us in tuning and testing the capabilities and tasks separately. ROS (Robot operating system) has been adopted for software development and synchronization ROS works on a publisher-subscriber based architecture by means of passing messages. Different packages have been built on the ROS Stack. ROS helped us to develop modular software with different tasks kept at different ROS nodes. All the nodes have been categorized into 4 different type of nodes.

• Control and Movement
• Image Processing
• Task Planner
• Sensor Data Acquisition

Control and Movement

In this first module basic maneuvering functions are written for forward, turn and heave. The Forward function has code for heading control for which it interacts with the sensors interfacing module. We have implemented a PID controller to achieve proper forward motion. It accepts a positive value for forward motion and negative value for reverse motion. The Turn function implements a self-designed control strategy to get accurate turns. Here theta value is obtained from magnetic heading value from the IMU. This function accepts positive value for Counter Clockwise turn and negative for Clockwise turn. For control, the software uses simple and effective heuristic algorithms on top of classic Proportional Integral Derivative (PID) controller.
The navigation system is dependent on AHRS implementation. In this application, the IMU is used only to measure vehicle attitude (roll, pitch, and possibly heading). Sensors like a pendulum pot, measure roll and pitch, but have a relatively narrow response. User friendly graphical interface has been created for debugging and visualization purpose

The images are acquired from the cameras using the camera interfacing nodes. These images are then thresholded using their HSV (Hue Saturation Value) values. HSV values for objects and markers are pre-calibrated and using the thresholding the similar color objects are isolated and filtered by shape and size constraints.
We have developed GUI applications to pre-calibrate the thresholding values and check the output of the applied filters and various constraints. Once, a suitable fit is obtained, parameters like centroid and orientation are sent back to Task Planner module to generate the appropriate control commands.
Underwater Images suffer from Non Uniform Lighting, Low Contrast and Diminished Colors Image enhancement techniques were used to overcome degraded image.

This module knows about the different tasks to be performed in the full mission and the sequence of the occurrence This module calls the appropriate image processing function to isolate either a buoy, marker, L shaped obstacle, etc as per the task to be done. After getting the values of centroid and orientation, control commands are generated and control module executes the motion while getting feedback from the sensor module. An intelligent algorithm is required to perform each task task successful. A typical flow for path marker following is given in ().

Task planner is also responsible for managing run time in the most efficient way. A timeout is set for each task during a single mission run.
